Description
Wonderful solution for pool heating!
Based on heat pump technology, it absorbs energy from the air and transfers it into the water. So the operation only requires very limited electric input, hence its heating efficiency can reach COP 5.6. Which make it perfect for pool heating. No other type of heaters can do this job better.
Based on heat pump technology, it absorbs energy from the air and transfers it into the water. So the operation only requires very limited electric input, hence its heating efficiency can reach COP 5.6. Which make it perfect for pool heating. No other type of heaters can do this job better.
Professional Manufacturing
As a professional manufacturing factory, standardized production lines and professional
quality control ensure reliable and stable quality.
As a professional manufacturing factory, standardized production lines and professional
quality control ensure reliable and stable quality.
Economic Operating
As a professional manufacturing factory, standardized production lines and professional
quality control ensure reliable and stable quality.
As a professional manufacturing factory, standardized production lines and professional
quality control ensure reliable and stable quality.
Economic Operating
Absorbing energy from the air to heat the pool is the working principle behind the heat
pumps. With energy efficiency reaching 5.6, its operating cost is only 1/5 of electric or gas heating
systems’.
Absorbing energy from the air to heat the pool is the working principle behind the heat
pumps. With energy efficiency reaching 5.6, its operating cost is only 1/5 of electric or gas heating
systems’.
Efficiency and Anticorrosive
Threaded titanium coil heat exchanger, not only improves energy efficiency by 30%, but also
makes it resistant to corrosion, suitable for both salty and fresh water.
Threaded titanium coil heat exchanger, not only improves energy efficiency by 30%, but also
makes it resistant to corrosion, suitable for both salty and fresh water.

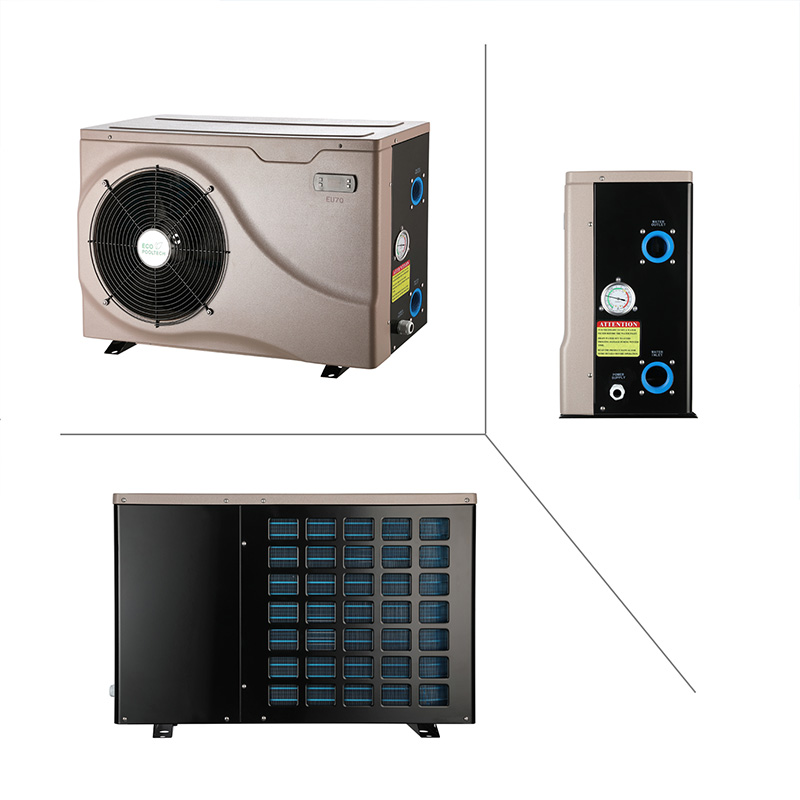

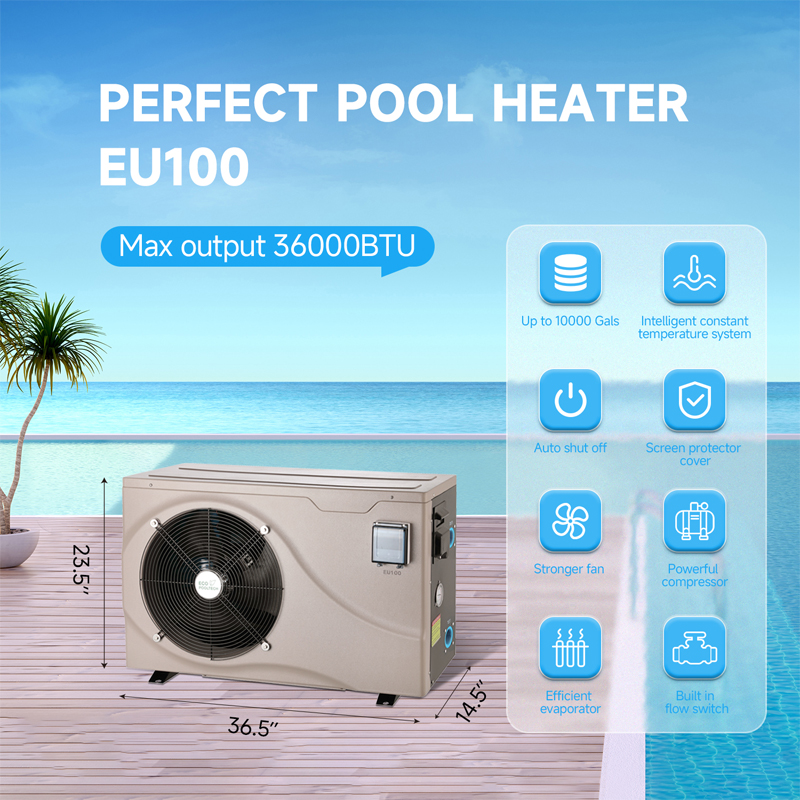

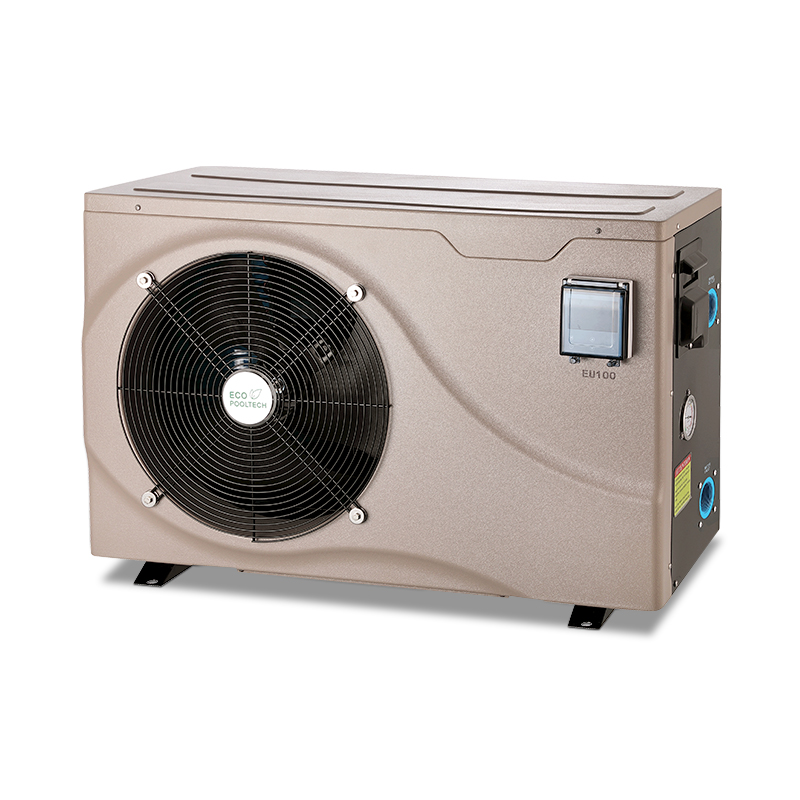

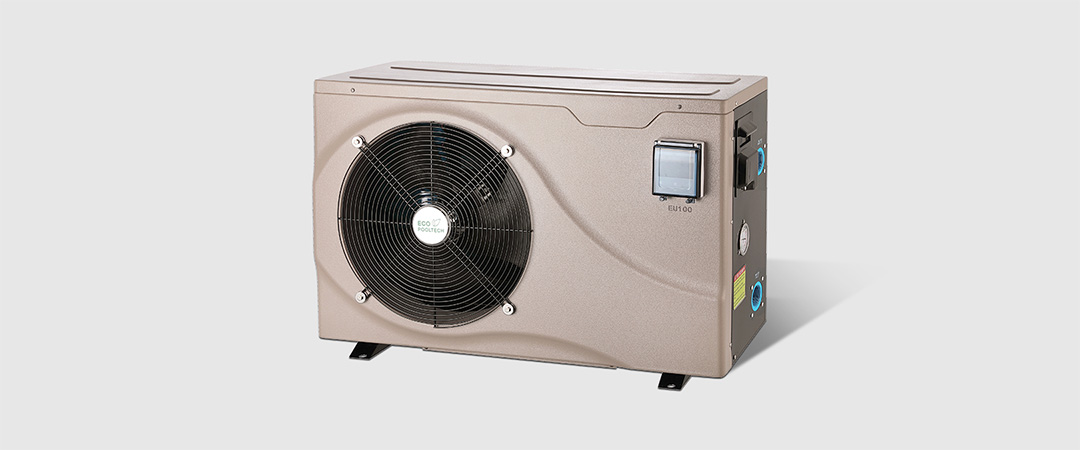

ECOPOOLTECH Pool Heat Pump Model EU100. ( Inverter system)
Max 36000 BTU output, idea for In-ground pools up to 8000 gallons and above ground pools up to 10000 gallons.
Max 36000 BTU output, idea for In-ground pools up to 8000 gallons and above ground pools up to 10000 gallons.
Rated Heating Capacity:
25000~36000 BTU/hr
Advised water flow:
2000~3000 GPH
25000~36000 BTU/hr
Advised water flow:
2000~3000 GPH
Rated Power Input:
2.16 kw
Water connection:

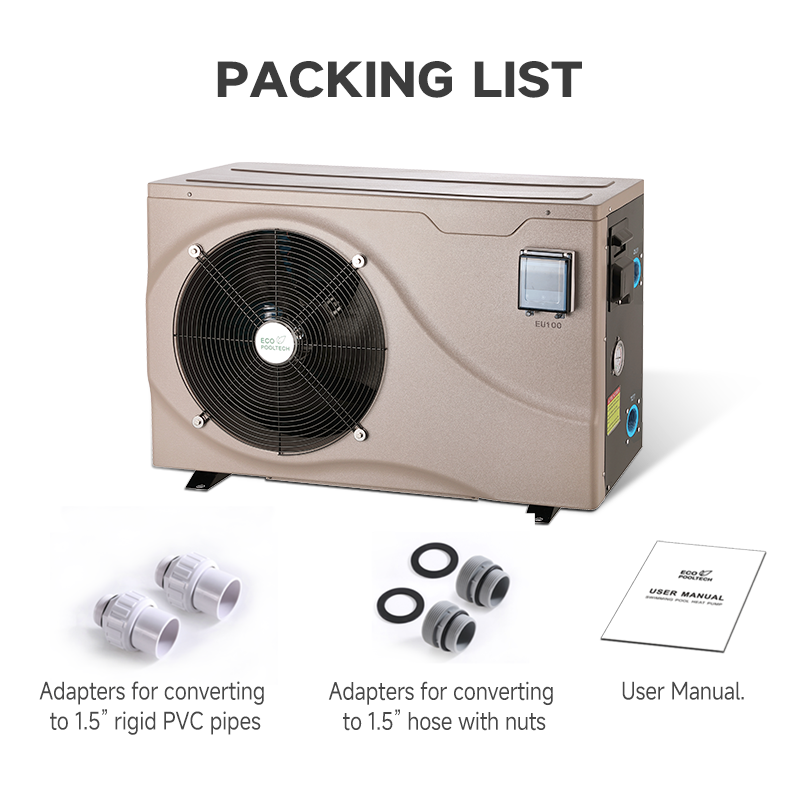

1-1/2”
2.16 kw
Water connection:
1-1/2”
Voltage:
230 V/ 60 Hz
Net Dimension:
36.5*14.5*23.5 inch
230 V/ 60 Hz
Net Dimension:
36.5*14.5*23.5 inch
Rated/Max Current::
10.5/13.5 Amp
Net Weight:
86lb
10.5/13.5 Amp
Net Weight:
86lb
Inverter Heating System.
*Rated Performance at Air 80°F, Humidity 80%, Water Heated to 80°F
EU30 EU50S
EU50 EU70
EU100
EU50 EU70
EU100
Heating CapacityMax Pool SizeSuiSuitable for poolsPower styleNet DimensionWeight
10000BTU
12000BTU
14000BTU
20000BTU
36000BTU
12000BTU
14000BTU
20000BTU
36000BTU
2000 gallonsAbove Ground Pool
4000 gallonsAbove Ground Pool
5000 gallonsAbove Ground Pool
6500 gallonsAbove In-ground Pool
10000 gallonsAbove In-ground Pool
120V / 60Hz15*12*13 inch
120V / 60Hz15.5*15*21 inch
120V / 60Hz15.5*15*21 inch
120V / 60Hz30*11.5*20 inch
230V/ 60Hz36.5*14.5*23.5 inch
41lb
53lb
54lb
68lb
86lb
53lb
54lb
68lb
86lb
Automan –
I have a 750 gallon stock tank pool and this thing works good for me. It takes a few hours (it’s summer in alabama) to heat it up to 90 degrees. You can feel the warm water coming out. Does not kick on by itself like others have said from what I can tell. There is a setting for it but mine doesn’t kick on after it reaches temperature. I just turn it on with my sand pump and let them run for a few hours before I swim. This unit would struggle on a pool any bigger. It would have to run nonstop with your pump. Works though for smaller pools and uses very little energy. Also if you have a bigger pump and hoses, the adapters don’t fit. I have an Intex sand filter with 1.5 inch hoses and I had to go to home Depot and use pvc adapters to reduce the size down to 1 inch. The female holes on the warmer were 1inch and the adapters are meant for the small and cheap cartridge pumps with flimsy little hoses.
KMK’sMommy –
I bought this for my 15×42′ Intex pool… I should have went a size up, but didn’t want to spend more money. It’s done a pretty decent job.. my pool water temperature was at 69° & once I hooked up the heater it raised the water temperature to 77° in less than a day. It’s not freezing, but it’s not warm.. to me it’s comfortable! For a smaller pool I imagine it would warm the water up past 80° no problem! I think it’s a good product.
JF –
I’ve had this for about a week now and so far so good. In New York with a 2000 gallon pool it maintains the water 10 to 15 degree warmer than the ambient temperature but keep in mind it only does this when you have it running all the time. Do not think is going to warm up your pools in a couple of hours.
